| Part Number | Operating Temp （℃） | RDS(ON)(HS+LS)(Ω) | VDD (Max) (V) | VDD (Min) (V) | OL (mA) | OC(A) | Control Mode | PWM Inputs | Current Sense Amplifier | Sleep Current (uA) | VS /VM (Max) (V) | VS /VM (Min) (V) | Number of Outputs | Power Switch | Control Interface | Package | Packing Qty. | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

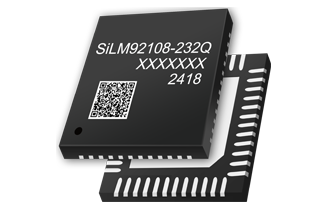

| SiLM92108（带宽共模电流检测放大器的8路智能半桥栅极驱动器） | 下载 | |||||||||||||||||
| SiLM92108-232EW-AQ | SPI | External | 8 | 5.5 | 28 | 3 | 2 | 3 | Independent, PWM | / | / | 3 | 5.5 | / | -40 ~ 125 | QFN7x7-48 WS | Reel/1000 | |
| SiLM9714（带宽共模电流检测放大器的4路智能半桥栅极驱动器） | 下载 | |||||||||||||||||
| SiLM9714SET-AQ | SPI | External | 4 | 4.9 | 37 | 2.7 | 2 | 4 | Independent, PH/EN, PWM | / | / | 3 | 5.5 | / | -40 ~ 125 | QFN6x6-40 | Reel/2500 | |
| SiLM9714SEV-AQ | SPI | External | 4 | 4.9 | 37 | 2.7 | 2 | 4 | Independent, PH/EN, PWM | / | / | 3 | 5.5 | / | -40 ~ 125 | QFN8x8-56 | Reel/2000 | |

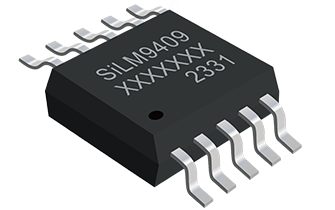

| SiLM9408/9409（ 独立半桥控制的 24V，1.2A 双路 H 桥电机驱动器） | 下载 | |||||||||||||||||
| SiLM9408MC-AH | GPIO | Integrated | 4 | 5 | 26 | 1 | / | 4 | PWM | / | / | / | / | 0.9 | -40 ~ 125 | SSOP10 | Reel/2500 | |
| SiLM9409MC-AH | GPIO | Integrated | 4 | 5 | 26 | 1 | / | 4 | PWM | / | / | / | / | 0.9 | -40 ~ 125 | SSOP10 | Reel/2500 | |

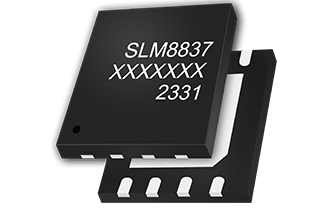

| SLM8837（ 独立半桥控制的 5V，1.8A H 桥电机驱动器） | 下载 | |||||||||||||||||
| SLM8837EF-7G | GPIO | Integrated | 2 | 0 | 11 | 0.02 | / | 2 | PWM | 1.9~3.5 | / | 1.8 | 5.5 | 0.28 | -40 ~ 125 | DFN2X2-8 | Reel/3000 | |
| SiLM94112-AQ系列（12通道可编程半桥电机驱动器） | 下载 | |||||||||||||||||
| SiLM94112MG-AQ | SPI | Integrated | 12 | 4.6 | 32 | 0.5 | / | / | Internal PWM | 0.9~1.4 | 8 | 3 | 5.5 | 0.9 | -40 ~ 125 | TSSOP24-EP | Reel/4000 | |
| SiLM94112FMG-AQ | SPI | Integrated | 12 | 4.6 | 32 | 0.5 | / | / | Internal PWM | 0.9~1.4 | 8 | 3 | 5.5 | 0.9 | -40 ~ 125 | TSSOP24-EP | Reel/4000 | |
