首页 - 信号与接口 - 数字隔离器

相关产品

双通道数字隔离器 四通道数字隔离器 六通道数字隔离器

产品选型表

展开过滤器
Part Number Forward/reverse channels Data rate (Max) (Mbps) VCCx (V) Prop. Delay (ns) Current/channel Typ (mA) Default output CMTI (kV/μs) Min Operating Temp(℃) VISO(Vrms) Package Group Packing/QTY Download

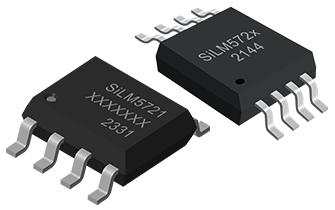

SiLM572x系列(高速双通道数字隔离器) 下载
SiLM5720CA-DG2 forward / 0 reverse1002.25~5.5121.5High150-40 ~ 1253000SOP8Reel/2500
SiLM5720FCA-DG2 forward / 0 reverse1002.25~5.5121.5Low150-40 ~ 1253000SOP8Reel/2500
SiLM5721CA-DG1 forward /1 reverse1002.25~5.5121.5High150-40 ~ 1253000SOP8Reel/2500
SiLM5721FCA-DG1 forward /1 reverse1002.25~5.5121.5Low150-40 ~ 1253000SOP8Reel/2500
SiLM5722CA-DG1 forward /1 reverse1002.25~5.5121.5High150-40 ~ 1253000SOP8Reel/2500
SiLM5722FCA-DG1 forward /1 reverse1002.25~5.5121.5Low150-40 ~ 1253000SOP8Reel/2500
SiLM5720CM-DG2 forward / 0 reverse1002.25~5.5121.5High150-40 ~ 1255000SOP8WReel/1000
SiLM5720FCM-DG2 forward / 0 reverse1002.25~5.5121.5Low150-40 ~ 1255000SOP8WReel/1000
SiLM5721CM-DG1 forward /1 reverse1002.25~5.5121.5High150-40 ~ 1255000SOP8WReel/1000
SiLM5721FCM-DG1 forward /1 reverse1002.25~5.5121.5Low150-40 ~ 1255000SOP8WReel/1000
SiLM5722CM-DG1 forward /1 reverse1002.25~5.5121.5High150-40 ~ 1255000SOP8WReel/1000
SiLM5722FCM-DG1 forward /1 reverse1002.25~5.5121.5Low150-40 ~ 1255000SOP8WReel/1000
SiLM5720CA-AQ2 forward / 0 reverse1002.25~5.5121.5High150-40 ~ 1253000SOP8Reel/2500
SiLM5720FCA-AQ2 forward / 0 reverse1002.25~5.5121.5Low150-40 ~ 1253000SOP8Reel/2500
SiLM5721CA-AQ1 forward /1 reverse1002.25~5.5121.5High150-40 ~ 1253000SOP8Reel/2500
SiLM5721FCA-AQ1 forward /1 reverse1002.25~5.5121.5Low150-40 ~ 1253000SOP8Reel/2500
SiLM5722CA-AQ1 forward /1 reverse1002.25~5.5121.5High150-40 ~ 1253000SOP8Reel/2500
SiLM5722FCA-AQ1 forward /1 reverse1002.25~5.5121.5Low150-40 ~ 1253000SOP8Reel/2500
SiLM5720CM-AQ2 forward / 0 reverse1002.25~5.5121.5High150-40 ~ 1255000SOP8WReel/1000
SiLM5720FCM-AQ2 forward / 0 reverse1002.25~5.5121.5Low150-40 ~ 1255000SOP8WReel/1000
SiLM5721CM-AQ1 forward /1 reverse1002.25~5.5121.5High150-40 ~ 1255000SOP8WReel/1000
SiLM5721FCM-AQ1 forward /1 reverse1002.25~5.5121.5Low150-40 ~ 1255000SOP8WReel/1000
SiLM5722CM-AQ1 forward /1 reverse1002.25~5.5121.5High150-40 ~ 1255000SOP8WReel/1000
SiLM5722FCM-AQ1 forward /1 reverse1002.25~5.5121.5Low150-40 ~ 1255000SOP8WReel/1000
