SiLM5350系列
单通道 30V, 10A 隔离栅极驱动器
样片申请
SiLM5350-AQ_Datasheet SiLM5350 Datasheet
产品概述
产品特性
安规认证
典型应用图
产品概述

SiLM5350系列是具体有10A峰值输出电流能力,并具有不同配置的单通道隔离式栅极驱动器。SiLM5350S提供分离输出,可分别控制上升和下降时间。SiLM5350M可提供内部钳位功能。驱动电源电压为4V至30V。3V至18V的宽输入VDDI范围使驱动器适合与模拟和数字控制器接口。所有电源电压引脚都有欠压锁定 (UVLO) 保护。

SiLM5350提供SOP8和SOP8W两种封装,SOP8封装提供3.0kVRMS隔离耐压,而SOP8W封装能提供5.0kVRMS隔离耐压。

高CMTI、低传播延迟、小尺寸、灵活性和成本效益使SiLM5350系列适用于各种隔离MOSFET、IGBT和SiC MOSFET以及GaN FET的驱动应用。


产品特性

10A 峰值输出电流

60ns 典型传输延迟

最小150kV/us 共模瞬态抗扰度 (CMTI)

输出驱动器电源电压范围 4V 到 30V

5V 输入反向耐压能力

工作结温范围, TJ: –40°C ~ +150°C

特性选项:
 - 分离的输出管脚 (SiLM5350S/R/H)
 - 带Clamp钳位功能(SiLM5350M/F/P)

符合车规认证AEC-Q100

安规认证

SOP8: 符合 UL 1577 1 分钟的 3.0kVRMS

SOP8W: 符合 UL 1577 1 分钟的 5.0kVRMS

符合 DIN V VDE 0884-11(计划中)

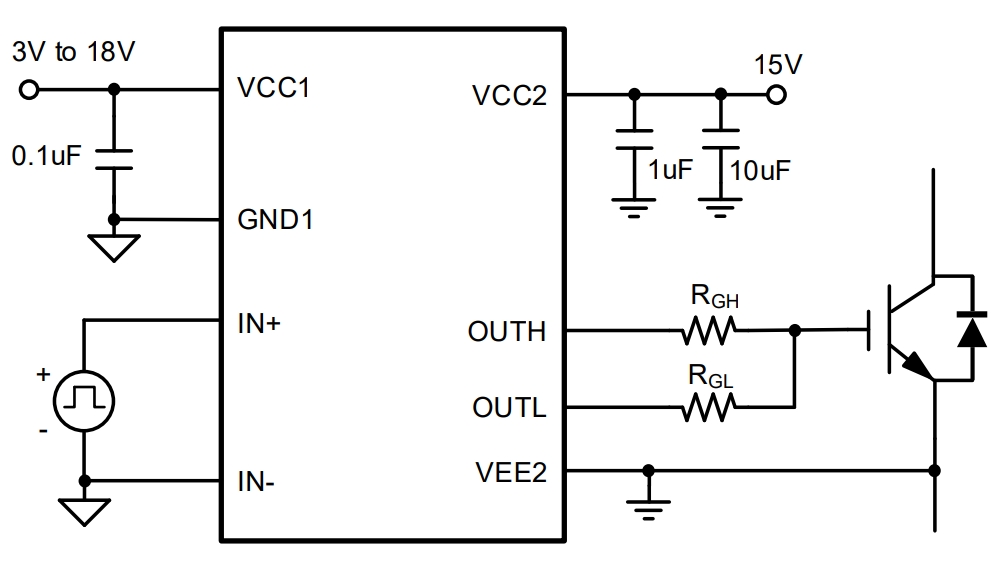

典型应用图


产品参数表

展开过滤器
Part Number Power Switch Feature Input VCC (V) IOH/IOL(A) Output VCC/VDD (V) Prop. Delay (ns) CMTI (kV/μs) Min. VISO(Vrms) Operating Temp (℃) Package Group Packing/QTY
SiLM5350SDBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350SBBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350SABCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350SGBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350RDBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350RBBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350RABCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350RGBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350HDBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350HBBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350HABCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350HGBCA-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350MDBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350MBBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350MABCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350MGBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350FDBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350FBBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350FABCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350FGBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350PDBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350PBBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350PABCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350PGBCA-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350SDDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350SBDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350SADCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350SGDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350RDDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350RBDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350RADCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350RGDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350HDDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350HBDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350HADCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350HGDCM-DGIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350MDDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350MBDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350MADCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350MGDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350FDDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350FBDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350FADCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350FGDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350PDDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350PBDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350PADCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350PGDCM-DGIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350SDBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350SBBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350SABCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350SGBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350RDBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350RBBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350RABCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350RGBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350HDBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350HBBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350HABCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350HGBCA-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350MDBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350MBBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350MABCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350MGBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350FDBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350FBBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350FABCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350FGBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350PDBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350PBBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350PABCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350PGBCA-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601503000–40 ~ 125SOP8Reel/2500
SiLM5350SDDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350SBDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350SADCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350SGDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350RDDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350RBDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350RADCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350RGDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350HDDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350HBDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350HADCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350HGDCM-AQIGBT/MOSFET/SiC/GaNSplit Output3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350MDDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350MBDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350MADCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350MGDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350FDDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350FBDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350FADCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350FGDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350PDDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.013 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350PBDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.09 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350PADCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.06 ~ 30601505000–40 ~ 125SOP8WReel/1000
SiLM5350PGDCM-AQIGBT/MOSFET/SiC/GaNMiller Clamp3 ~ 1810.0/10.04 ~ 30601505000–40 ~ 125SOP8WReel/1000
